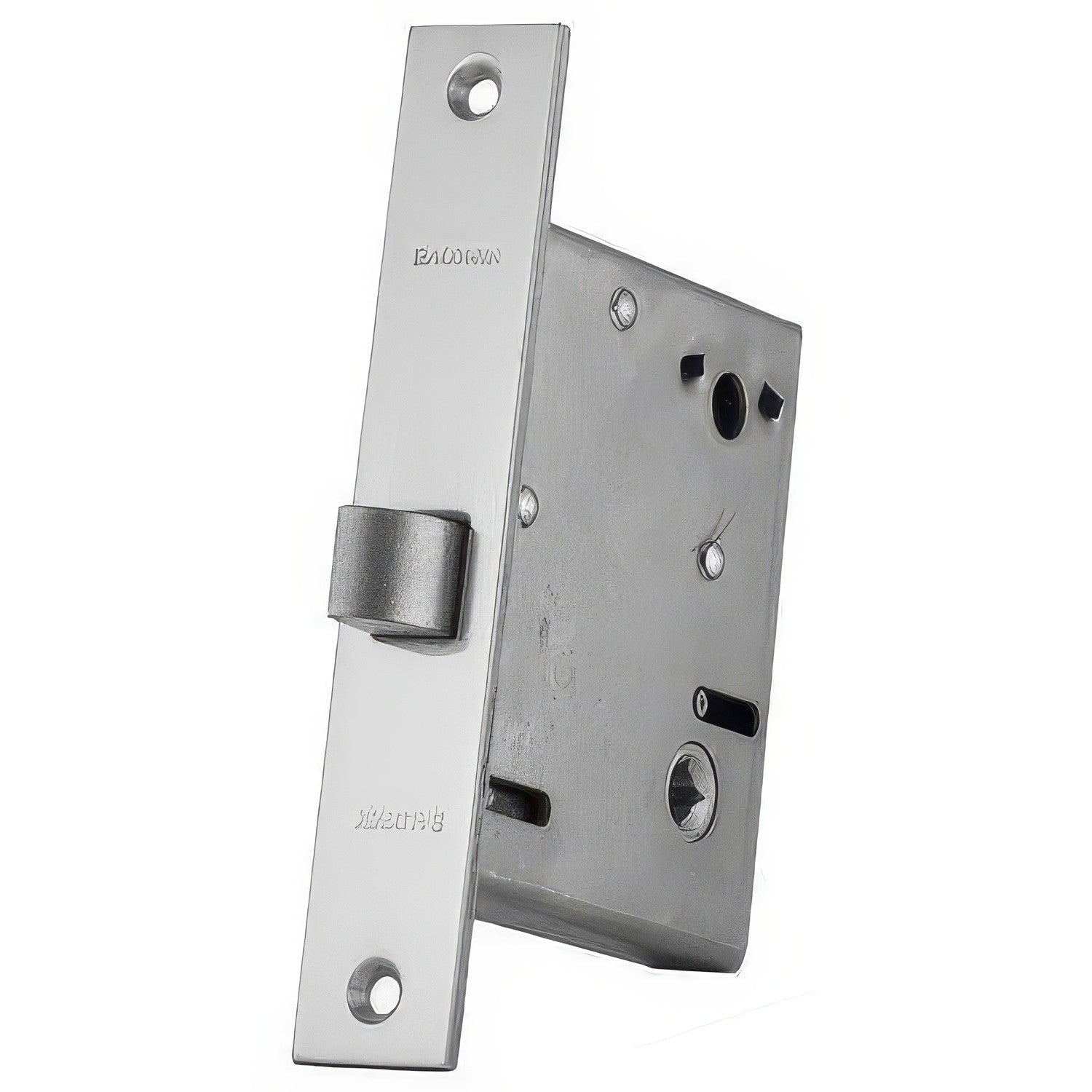

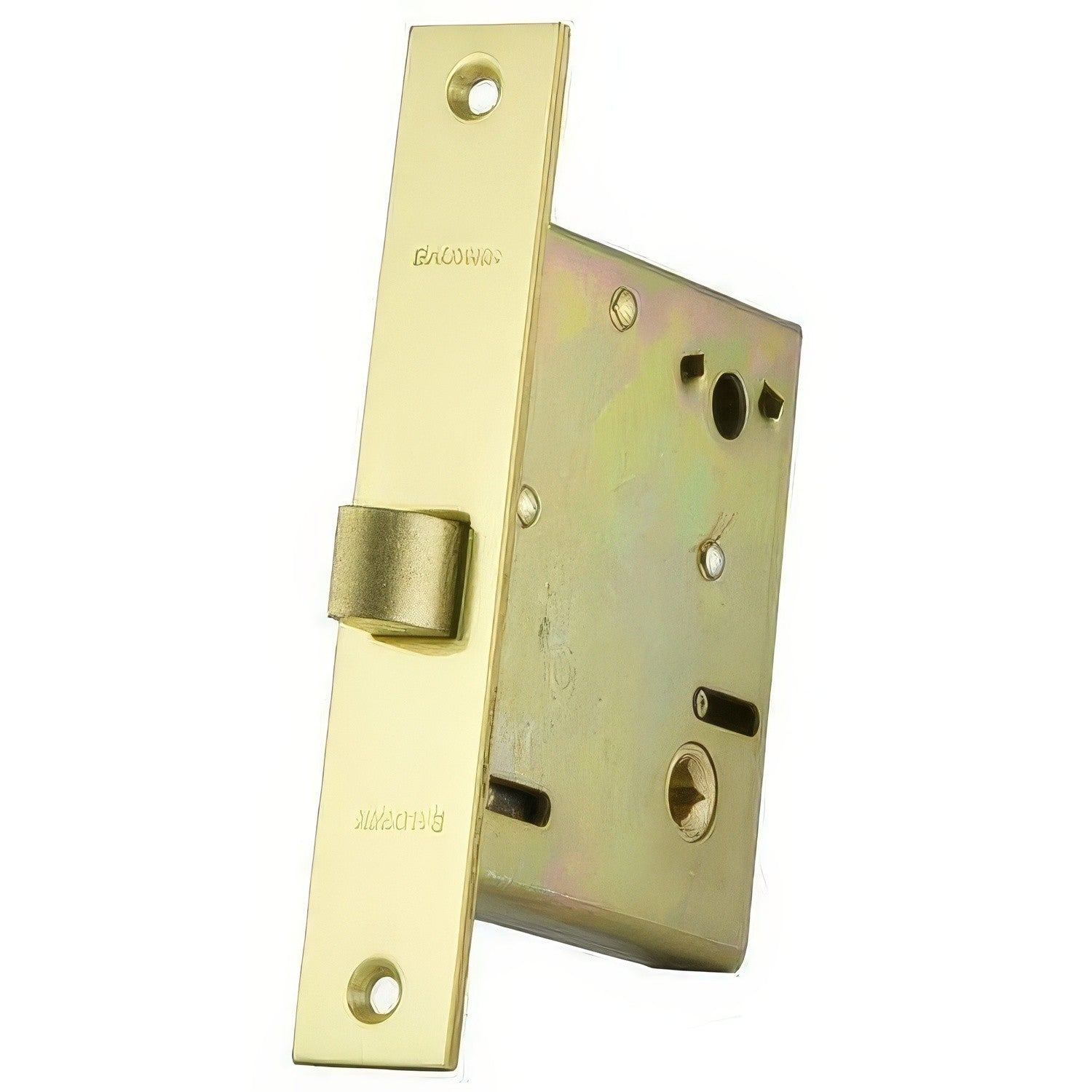

Baldwin 8530.L Small Case Mortise Lock For Left Hand Estates Knob by Knob

• Reversible interior passage mortise lock with 2-1/2" backset
• Knob by Knob
• Cost effective alternative to Tubular Latch with Mortise Bolt
• Quick and easy install on pre-prepared doors
• Heavy guage steel case, solid forged brass interior working parts
• Completely reversible for all door conditions
• Turn Pieces and Emergency Release Trim must be ordered separately (Not included in price of lock)
• Spindle not included
• Steel Case: 0.625" x 3.375" x 3.75"
• Front: 0.156" x 1" x 5.75". Adjustable for beveled conditions; finished to match.
• Latch Bolt: 0.5" x 0.625" x 0.5" throw. Furnished in US4 and 26D finishes to match trim.
• Hub Size: 0.29". Broached on the diamond.
• Backset: 2.5"
• Spacing: Knob hub to turn piece: 2.25"
• Strike: Specially-designed curved lip strike is fully reversible (non-handed); available in 1.25" Lip to Center dimension only
• Dust Box: Box is furnished unattached; conceals installation marks and cutouts
• Packed: One in a box with a strike, dustbox, and fasteners.
• Ordering Instructions: Locks are supplied as illustrated in left column. To install as illustrated in right column, specify the OPPOSITE HAND OF THE DOOR
