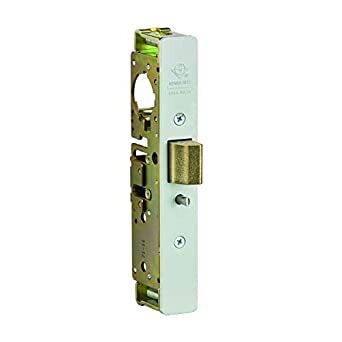

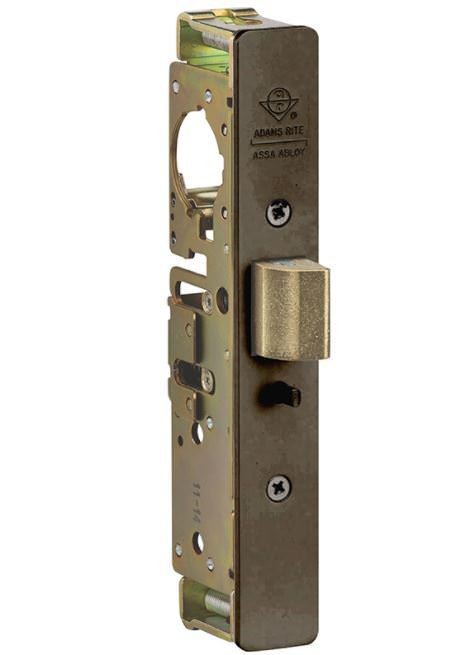

Adams Rite 490036201 Heavy Duty Deadlatch 1-1/8 inch Right Hand 2-5/8 inch Flat Mortised Strike

4900 Heavy Duty Deadlatch provides flexible traffic control and easy installation.

Function:

Flexibility of traffic control and easy installation is offered by 4900 Series Heavy Duty Deadlatches. A key-controlled bolt hold-back feature allows for two-way traffic for applications which require free entrance at certain times and exit-only at other times. This allows a "locked" entrance to be used as an exit by visitors already in the building. 1-3/4" [44.5 mm] minimum door thickness required. Interchangeable, without stile modification, with any MS1850S deadbolt of same backset and faceplate shape. Also retrofits to existing 4510 and discontinued 4700 Deadlatch preparations.

Operation:

Turn key or operate handle or paddle to retract spring-loaded latchbolt. To hold bolt retracted, push it in and secure by reverse turn of key. Lock accepts any standard 1" [25.4 mm] length, 1-5/32" [29.4 mm] diameter mortise cylinder with MS® cam such as the 4036 Mortise Cylinder or thumbturn such as the 4066Thumbturn, available separately. Lock accepts cylinder from either or both sides.

Specifications

• Series: 4500 Series
• Backset: 1-1/8" Backset
• Strike: 2.625" Flat Mortised Strike
• Handing: Right Hand
• No_of_Inners: 1
• Length: 8.8
• Width: 3.3
• Height: 2.1
• Weight: 1.8

Additional Adams Rite Information

View Adams Rite Manufacturer Warranty

Shop All Adams Rite Products

Do not use prints made from this website to mark distances.

Due to individual printers, dimensions on installation instructions may not print at an accurate scale.
